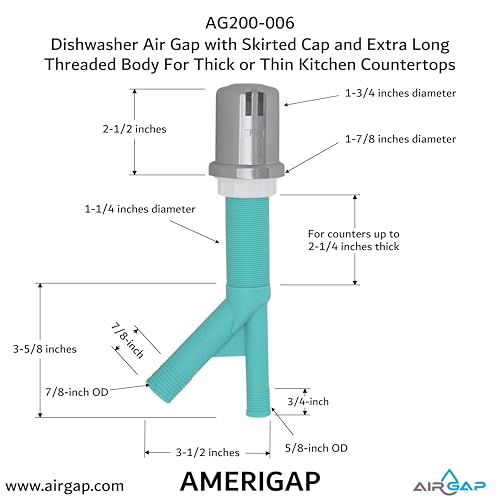

Dishwasher Air Gap with Skirted Cap and Extra Long Threaded Body for Thick or Thin Kitchen Countertops

⭐ Key Features

•❤ FLOW RATE: The AG200-006’s maximum flow rate is 9.8 gallons per minute (GPM). The maximum flow rate through this air gap is the highest flow rate above which the air gap will overflow. At maximum flow rate, the air gap is dry on the outside.

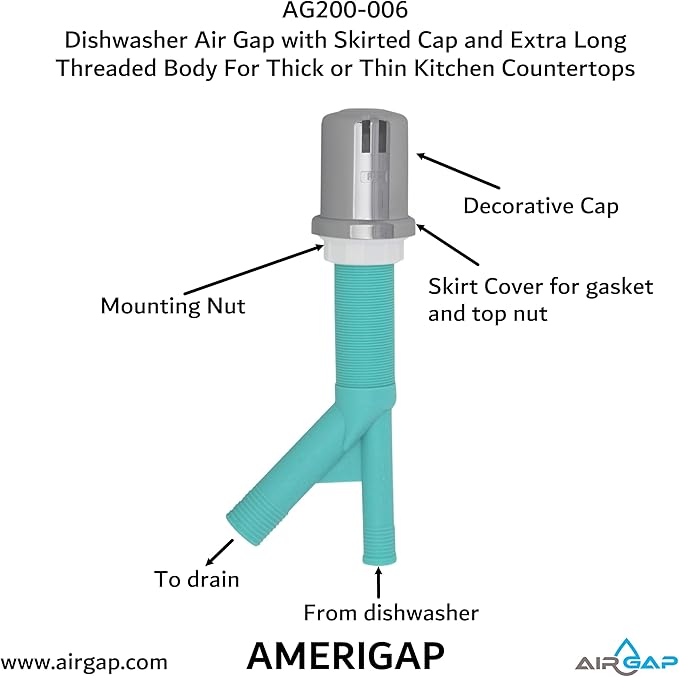

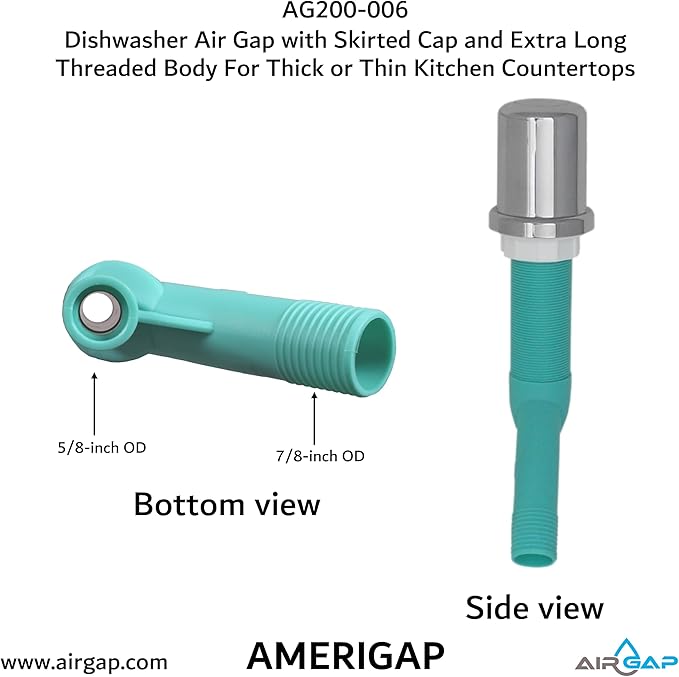

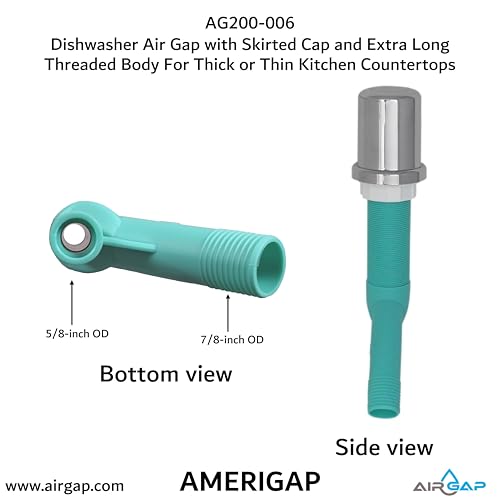

•❤ INLET PORTS: The AG200-006 accepts standard 5/8-inch inside diameter hose from a dishwasher. The hose from dishwasher slides onto the bottom port and is secured using stainless worm clamps (not included). Make sure there are no kinks in the hose and that water passes freely.

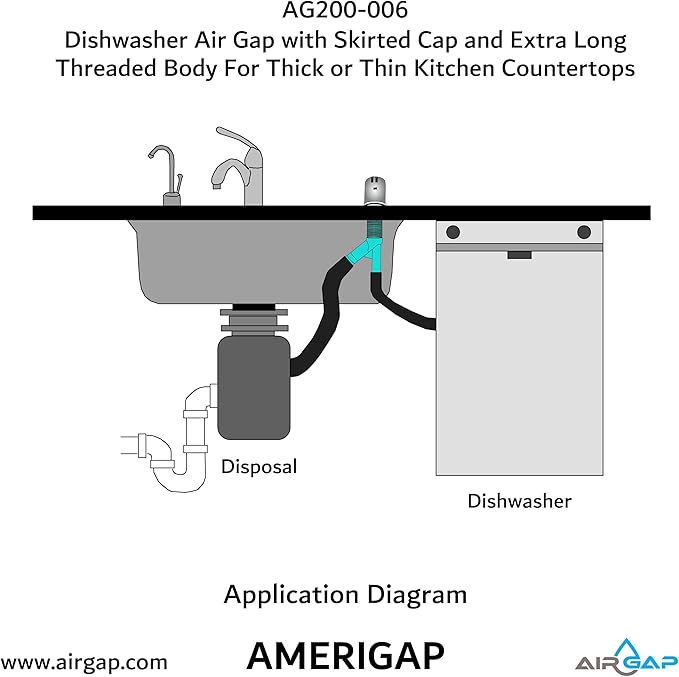

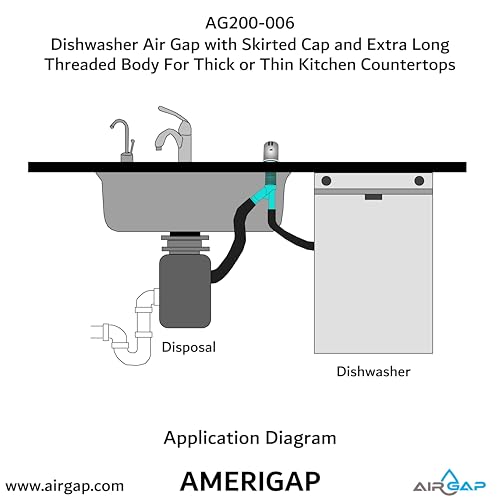

•❤ OUTLET PORTS: The drainage side of the air gap connects to a 7/8-inch inside diameter hose, which routes discharge water to the side drain connection on the garbage disposal. This hose is available from Home Depot (search for “PVC Disposal Discharge Hose”). When installing this hose, make sure that there is no sagging or loops. Any sagging will create standing water and will restrict the proper draining of the air gap. Secure both ends of the hose with a 1-inch stainless steel hose clamp.

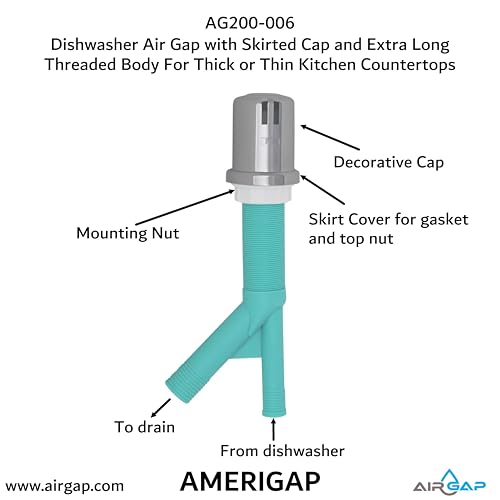

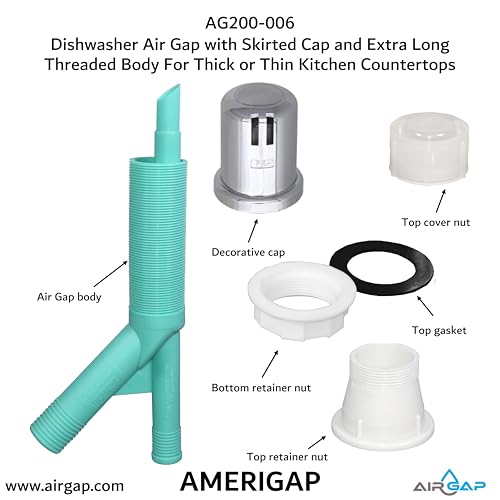

•❤ THREADED BODY: The AG200-006 has a body with a thread that enables air gap mounting through a standard countertop. Countertop thickness can be up to 2-1/4 inches, and it does not require any special modification to accommodate this air gap. The body of the air gap made from extra durable plastic to resists bending or deforming.

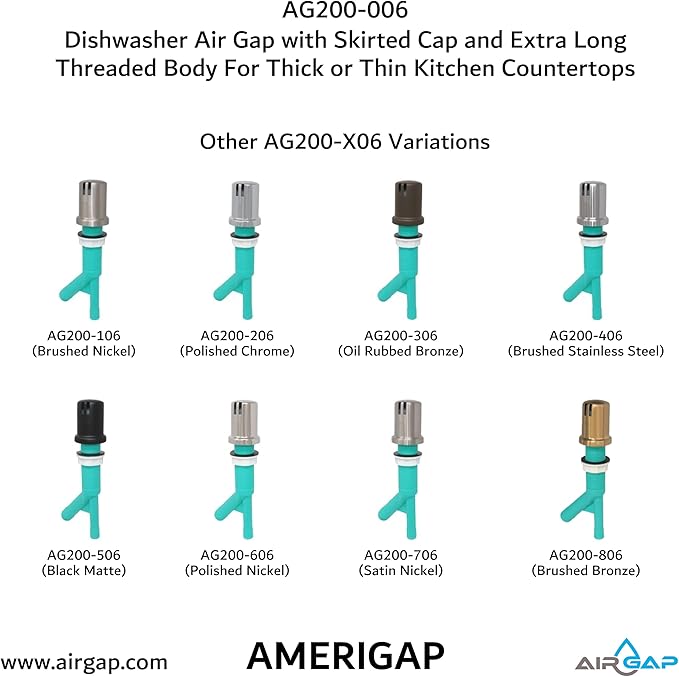

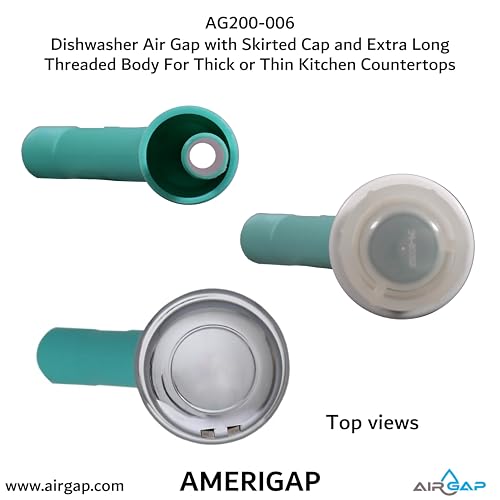

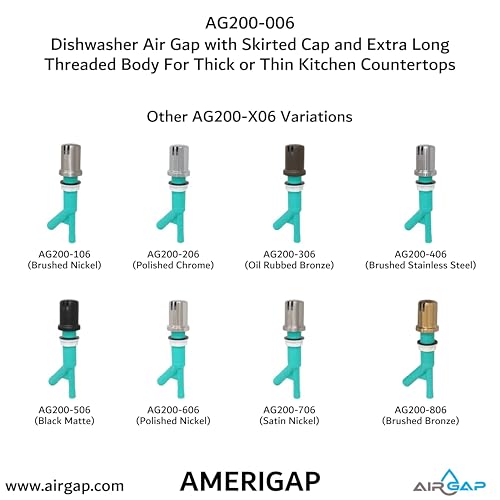

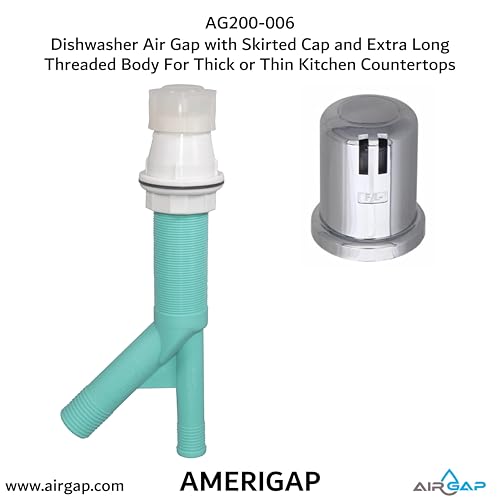

•❤ DECORATIVE CAP: The AG200-006 comes with a standard polished chrome cap. For those looking to match their air gap caps with their kitchen faucet, we offer AG200-X06 air gaps with different cap finishes, designed to complement any kitchen décor.

🛠️ Specifications

• Brand : AIR GAP INTERNATIONAL
• Material : Plastic
• Unit : 1 Count
• Color : Green
• Included components : Dishwasher

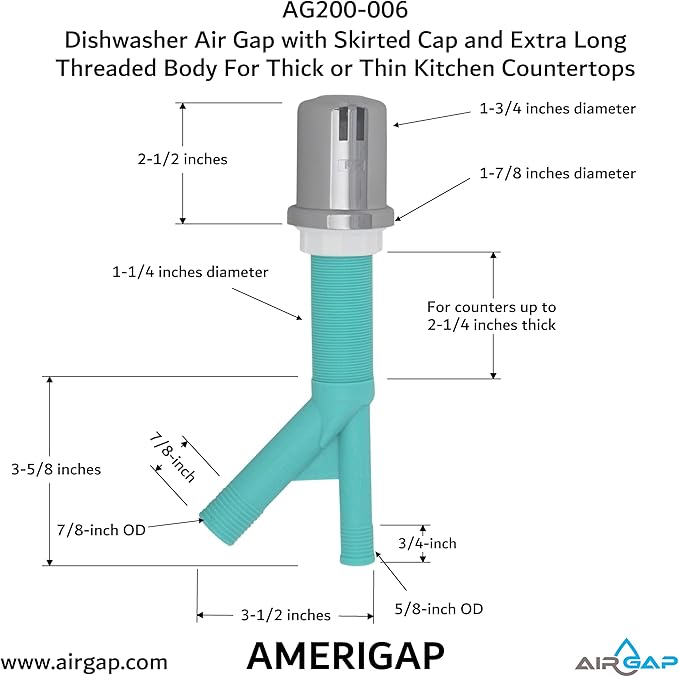

• Size : 5/8-inch (inlet), 7/8-inch (outlet)
• Style : Modern
• Type : HOSE_PIPE_FITTING
• Item dimensions : H: 8.5 / L: 3.5 / W: 1.9 (Weight: 0.01)
• Package dimensions : H: 2.1 / L: 8.7 / W: 5.2 (Weight: 0.22)

📋 Product Description

A dishwasher air gap provides safe drainage of the discharge water into the garbage disposal drain. The plumbing code requires the dishwasher air gap in most states. Using a dishwasher without an air gap is not recommended. The AG200-006’s maximum flow rate is 9.8 gallons per minute (GPM). The maximum flow rate through this air gap is the highest flow rate above which the air gap will overflow. At maximum flow rate, the air gap is dry on the outside. The AMERIGAP brand dishwasher air gap provides many advantages over other air gaps available on the market and ensures safety and peace of mind that your water supply is clean. A common misconception is that a “high loop” (routing a drain line above a sink’s flood level, for instance) will provide the same function as an air gap; this is not true, because the continuous connection between dishwasher and drain line still will allow back-flow of dirty water through siphoning. This air gap is easy to install, easy to use, and easy to maintain. The AG200-006 air gap is UPC and IPC listed.
